Low Carbon Steel 40-100μm Hot Dip Galvanizing Equipment

Name: Low Carbon Steel 40100μm Hot Dip Galvanizing Equipment
Brand: Xinlingyu
Price: 1 USD

Wholesale Low Carbon Steel 40-100μm Hot Dip Galvanizing Equipment from china suppliers

Brand Name : Xinlingyu

Certification : IS09001:2015 , ISO 45001:2018

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Delivery Time : 90 days

Price : negotiable

Packaging Details : Suitable for container shipment, both marine and inland transportation

Application : Drain Pipe, structure pipes, construction piling pipes

Pipe Material : Low carbon steel, mild steel, GI coil, HRC, CRC

Thickness : 40-100 micron

Control : Automatic

Contact Now

Product Description

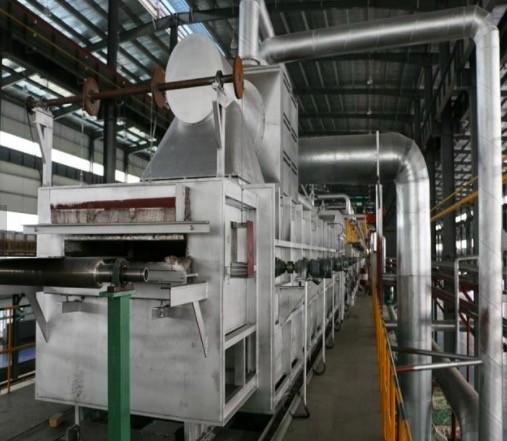

Hot-dip Galvanizing Line

We provide hot-dip galvanizing line with American-Steel-Union process, which can produce sheet with small spangles or without spangles. The product has good performance of corrosion resistance and coating adhesion, used widely for manufacture of automobile, household electric appliance, building construction and base plate for color coating etc.

Material	Thickness	Width	Line speed	Plating Weight	Energy
Plain carbon steel, Low alloy steel	0.18~2.0 mm	300~1250 mm	50~180 m/min	80~300 g/m2(Double)	Electricity, Natural gas, LPG, Etc

Technical Parameter

Process method: American- steel – union

Material: cold rolled carbon structure steel, qualified carbon structure steel and low alloy steel roll

Steel type: 08AL,SPCC,SPCD ,SPCE

Layer condition: normal spangle, small spangle, skin pass spangle

Layer weight: GI:GB/T2518-88

Layer thickness range(two side): 50—300 g/m2

Layer control method: air knife

Treatment after galvanized: skin pass, stretch, anti-fingerprint coating/chromate coating

Continuous annealing furnace: horizontal/vertical , electricity, natural gas, coal gas, etc

Zinc pot: main frequency induction heating ceramic zinc pot

Skin pass: four-tandem, bottom support roller AC frequency driving

Tension leveler: single bending & single stretching /double bending & single stretching/two bending & two stretching, elongation among 0.5~2.0%

Driving control: main drive adopt SIEMENS AC complexor frequency control system
